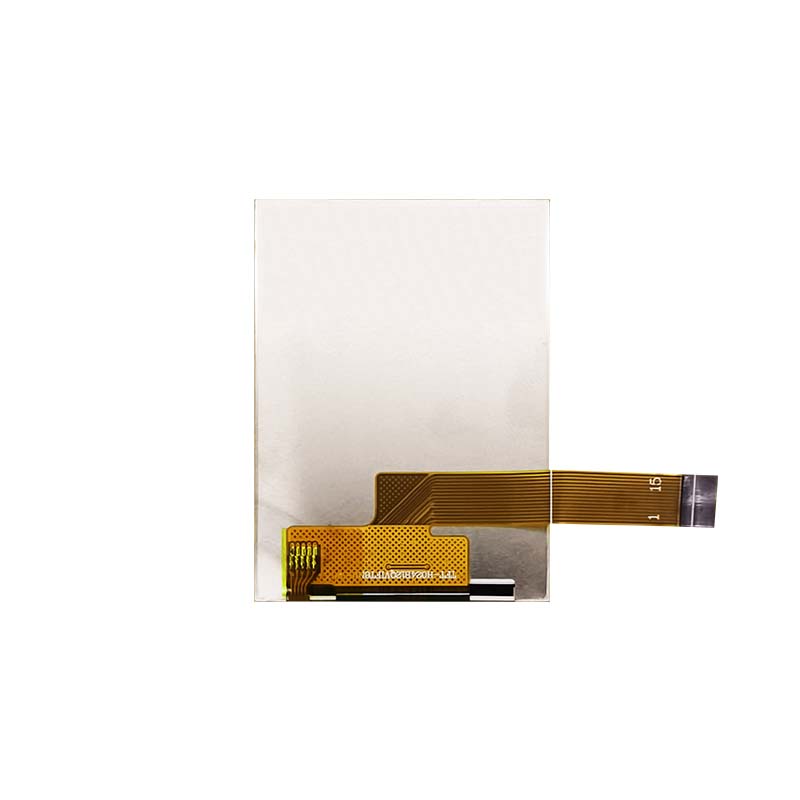

TFT-H024B12QVIFT8N15 |2.4 inch 240x320 IPS TFT LCD Display JD9852 Controller MIPI DSI Interface
This 2.4" IPS MIPI DSI TFT display features a high resolution of 240x320 pixels and built-in EMI shielding. This TFT features a MIPI interface, offering additional benefits such as high data transfer rates, reduced EMI, and reduced wiring complexity. It also includes a high-brightness LED backlight with a typical brightness level of 800 cd/m². Sunlight-readable, thanks to its built-in IPS technology, this LCD offers stunning clarity, excellent color reproduction, improved image consistency, and high contrast across all viewing angles.
While this transmissive LCD does not include a touchscreen, its impressive quality and 2.8V power supply make it an excellent choice for projects requiring high-end visual output without touchscreen functionality. Powered by a built-in JD9852 driver IC and compatible with Android/RK boards, this TFT display delivers exceptional performance and reliability. This driver optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. This LCD features Unlike other displays in the same series, this model features an FFC (Flexible Flat Cable) connection. This design's FPC is located to the side of the display, making it suitable for specialized configurations. Users can also request a customized FPC based on their product design, ensuring a smooth electrical connection. Our displays are RoHS-compliant and adhere to strict environmental and safety standards.
In the same series, we also offer the resistive touch TFT-H024B18QVIST8R40, the ultra-bright capacitive touch TFT-H024A1QVISTKC40, and the 2.4-inch smart display HTM-H024A16-UART-A02.
