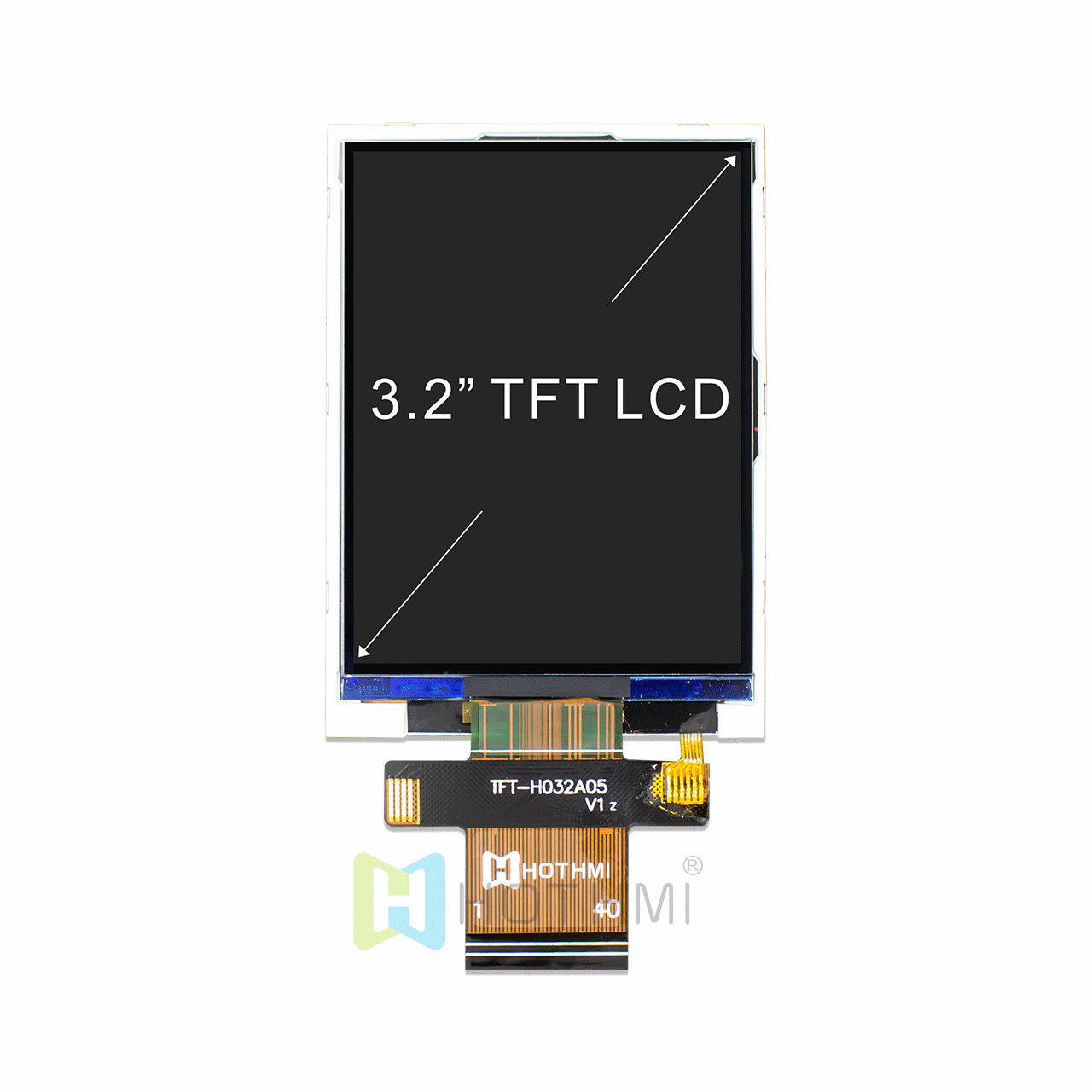

3.2 Inch TFT LCD Module | 240x320 SPI interface With ST7789 Controller

3.2 Inch TFT LCD Module | 240x320 SPI interface With ST7789 Controller

▶ Model: TFT-H032A05QVIST6N40

▶ Type: TFT vertical screen
▶ Display pixels: 240x320 Px
▶ Overall dimensions (mm): 55.04x77.70x2.45
▶Display inches: 3.2"
▶ Effective size (mm): 48.60x64.80
▶ Application: C8051/Arduino/STM32
▶Viewing angle: IPS (U80/D80/L80/R80)
▶Brightness: 600cd/m2
▶ Pin: FPC-40PIN
▶Interface: SPI/MCU
▶ Special reminder: Anti-static ESD 8KV
▶ Working temperature: -30~80℃
▶Power supply voltage: 3.3V
▶ Driver chip: ST7789

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
EZUI-Let adapter board/MCU/40PIN
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)

Product Description
Customized Services
Attributes

TFT-H032A05QVIST6N40 | 3.2-inch TFT LCD Module | 240x320 SPI Interface with ST7789 Controller
The TFT-H032A05QVIST6N40 is a 3.2-inch color LCD module with a 240x320 resolution, a built-in ST7789 controller, and wide viewing angles. Its moderate brightness and ideal size ensure a high-quality, comfortable display.

This display is lightweight and convenient. The flexible FPC cable allows for easy assembly and disassembly. The display can be connected to a development board via plug-in or soldering. This display supports common platforms such as Arduino and C8051. We also provide a module with an MCU and SPI driver board, allowing users to quickly and efficiently power up the display, eliminating the need for lengthy development. The display module features an MCU interface driver board, the HTM-H032A05-MCU-V1, and an SPI interface driver board, the HTM-H032A05-SPI-V1. This series also includes the resistive touch TFT-H032A3QVTST3R40.

This module supports both landscape and portrait display modes. Made with RoHS-compliant materials, this module is widely used in various instruments, smart devices, and more.

Customized material: Customized touch cover of various materials: such as tempered glass (up to 7H), acrylic material, etc.

Customized special-shaped contour: Support special-shaped cutting/opening/edging (2.5D, 3D)/transmittance.

Cover color and logo silk screen customization: Supports silk screen printing in different colors (usually black or white); supports silk screen printing of logos in multiple colors.

Customized cover thickness: 0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0/8.0/10.0(mm)，etc.

Customized different transmittance: High light transmission efficiency, which directly affects the visual effect of the touch screen.

Opening service: Through holes with a diameter of ≤10mm can be opened.

Cover surface treatment: Optional touch screen surface treatment methods are available: AG anti-glare/AR anti-reflection/AF anti-fingerprint.

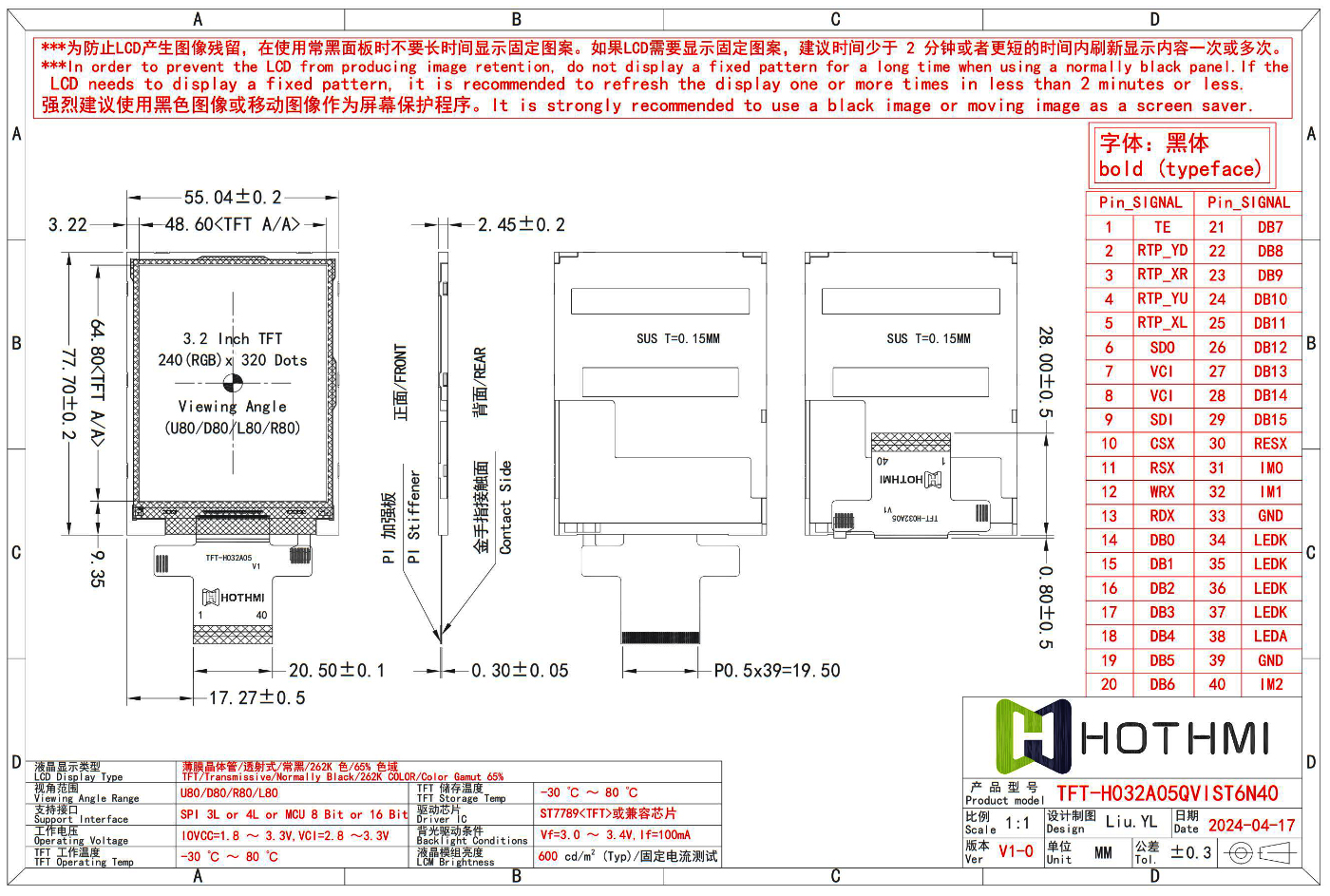

project	Parameter Description	unit
TFT series	Standard TFT
Diagonal size	3.2”	Inch
Resolution	240 × RGB ×320 (TFT)	dots
Dimensions	55.04(H)x77.70(V)x2.45(D)	mm
Effective area (AA)	48.60x64.80	mm
LCD type	TFT vertical screen
Display perspective	80/80/80/80 (IPS)
Aspect ratio	3:4
Backlight type	LED, white
TFT driver IC	ST7789
Touch panel	none
Surface	Glare
Brightness	600	cd/㎡
Operating temperature	-30~+80	°C
Storage temperature	-30~+80	°C
