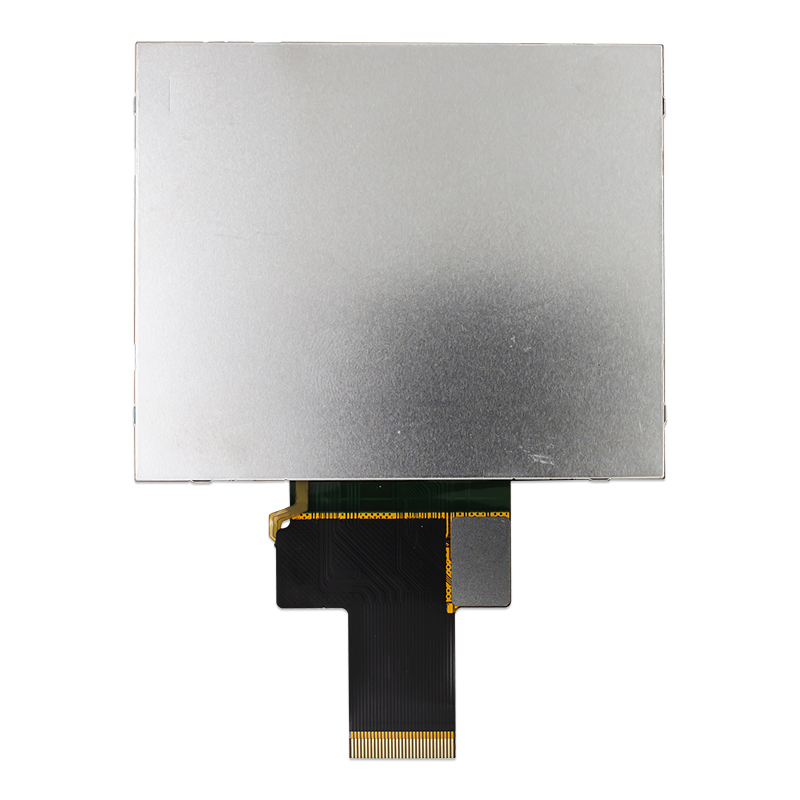

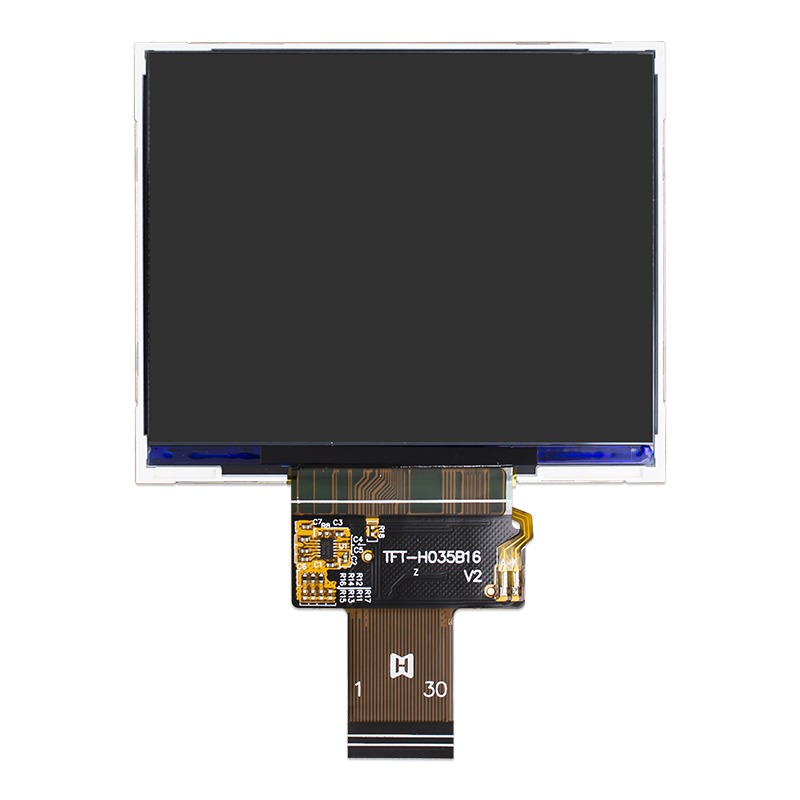

3.5 Inch 640x480 TFT LCD With MIPI Interface For Industrial

3.5 Inch 640x480 TFT LCD With MIPI Interface For Industrial

▶ Model: TFT-H035B16VGIST4N30

▶ Type: TFT standard color screen
▶ Display pixels: 640x480
▶ Overall dimensions (mm): 76.90x63.90x3.10
▶ AA size (mm): 70.08x52.56
▶ Diagonal size: 3.5"
▶ Application: Industrial control equipment
▶ Viewing angle: full view
▶ Backlight/brightness: 450cd/m2
▶ Pin: 30pin
▶ Interface mode: MIPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -30~80℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7703

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

JYX68 main control board-MIPI specified display screen
MIPI interface display to HI driver board Raspberry Pi universal 20pin/30pin/40pin
HI-MIPI-30pin universal adapter board
EZUI-C driver board/MIPI/LVDS/RGB (800*480 or above)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board

Product Description
Customized Services
Attributes

TFT-H035B16VGIST4G30 | 3.5" IPS LCD | 640x480px High Resolution Screen | MIPI Interface LCD Display
This 3.5-inch IPS TFT display features a high resolution of 640x480 pixels and a MIPI interface, offering the added benefits of high data transfer rates, lower EMI, and reduced wiring complexity. It boasts a brightness level of 450cd/m². Thanks to its built-in IPS technology, the LCD delivers stunning clarity, excellent color reproduction, improved image consistency, and high contrast across all viewing angles.

Powered by a built-in ST7703 driver IC and compatible with Raspberry Pi/SMT32, Linux, and Android platforms, this TFT display delivers exceptional performance and reliability. This driver optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. The LCD and touchscreen utilize an FPC connector for easy electrical connection.

This model is a non-touch version. Users can choose between a capacitive touch version (TFT-H035B16VGIST3C30) or a non-touch version with a custom cover plate (TFT-H035B16VGIST4G30). Our displays are RoHS compliant and adhere to strict environmental and safety standards.

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H035B16VGIST4N30
Diagonal size	3.5”	Inch
Resolution	640x480	Dot
Dimensions	76.90x63.90x3.10	mm
Active area (AA)	70.08x52.56	mm
LCD type	3.5” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	3：2
Backlight type	LED white
TFT driver IC	ST7703
Brightness	450cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
