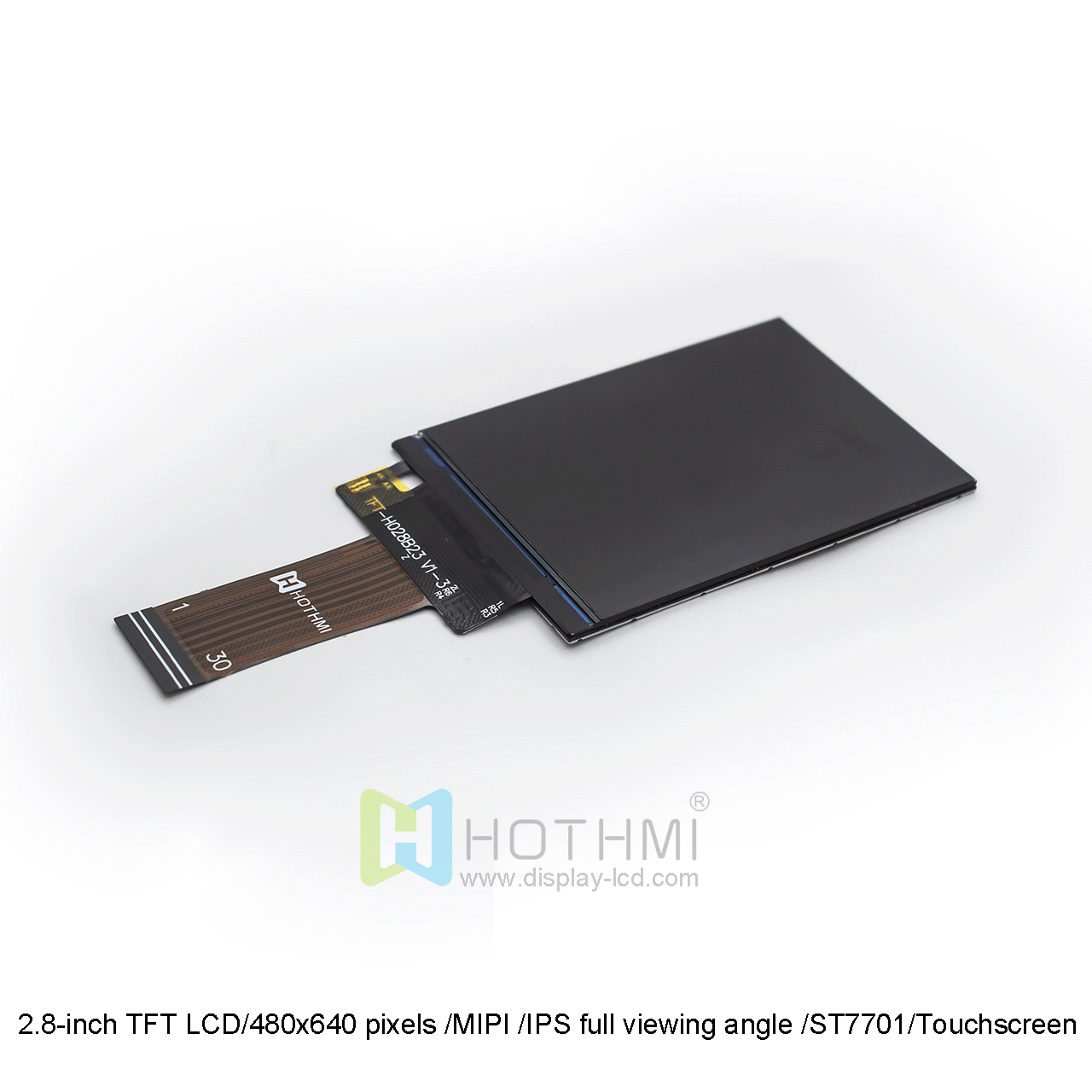

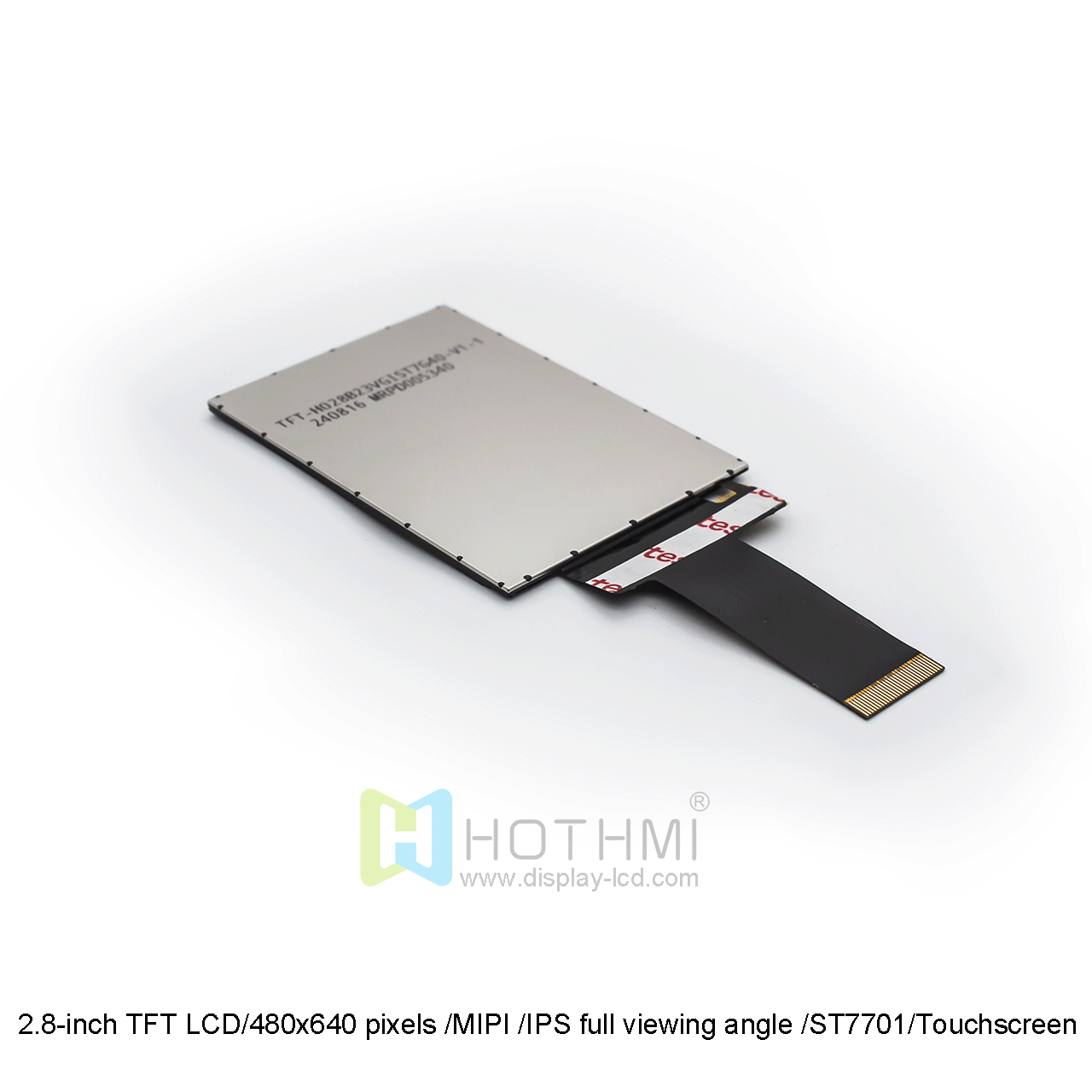

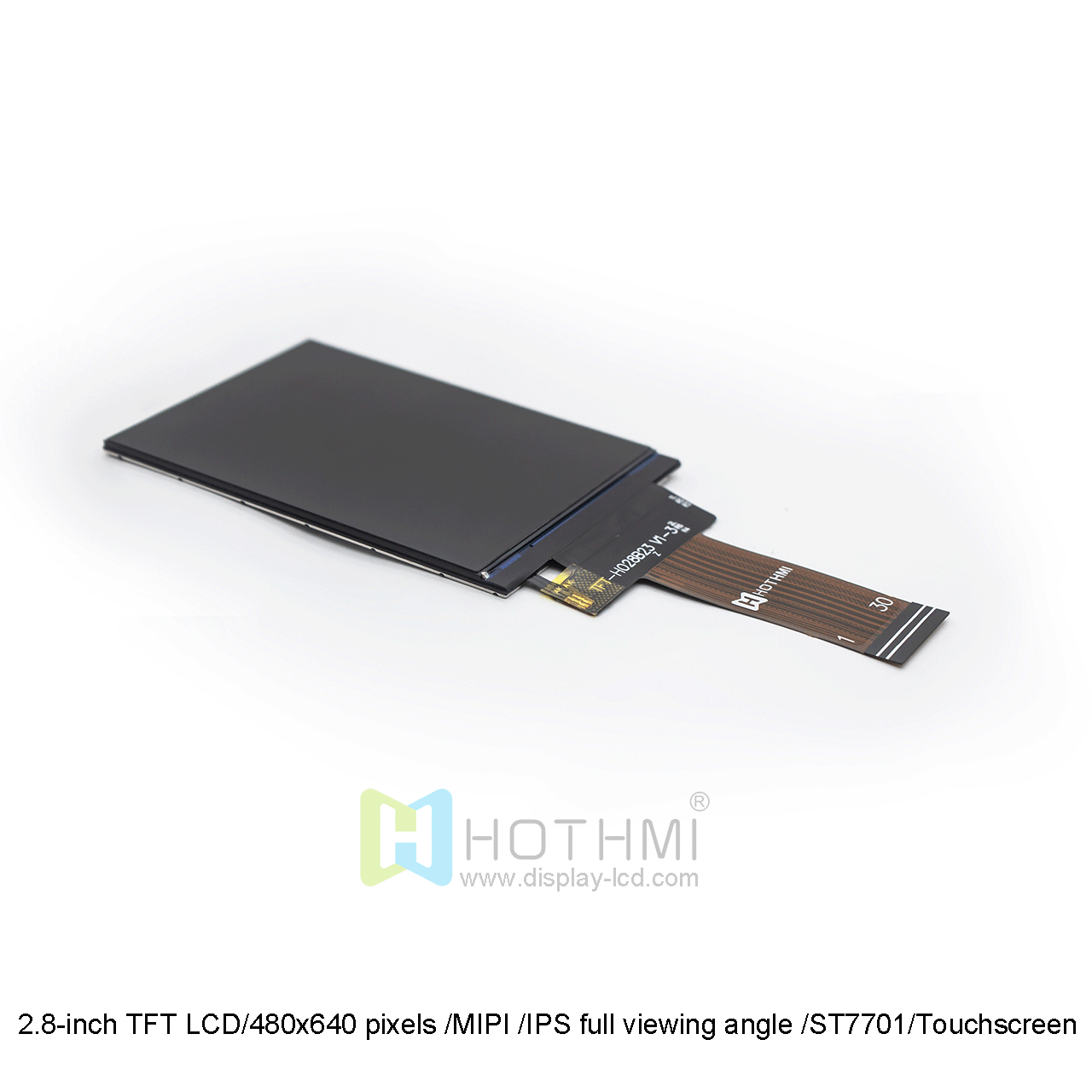

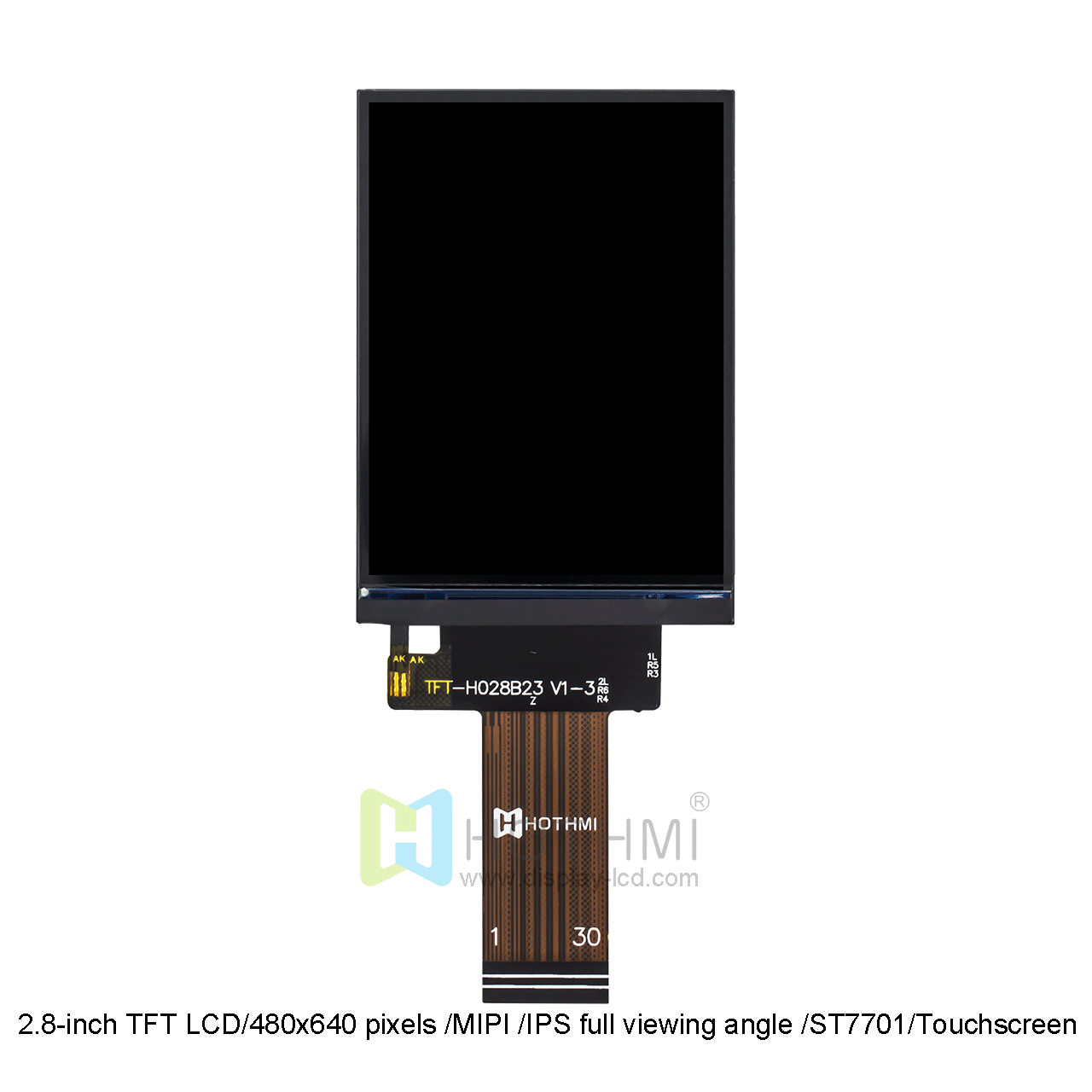

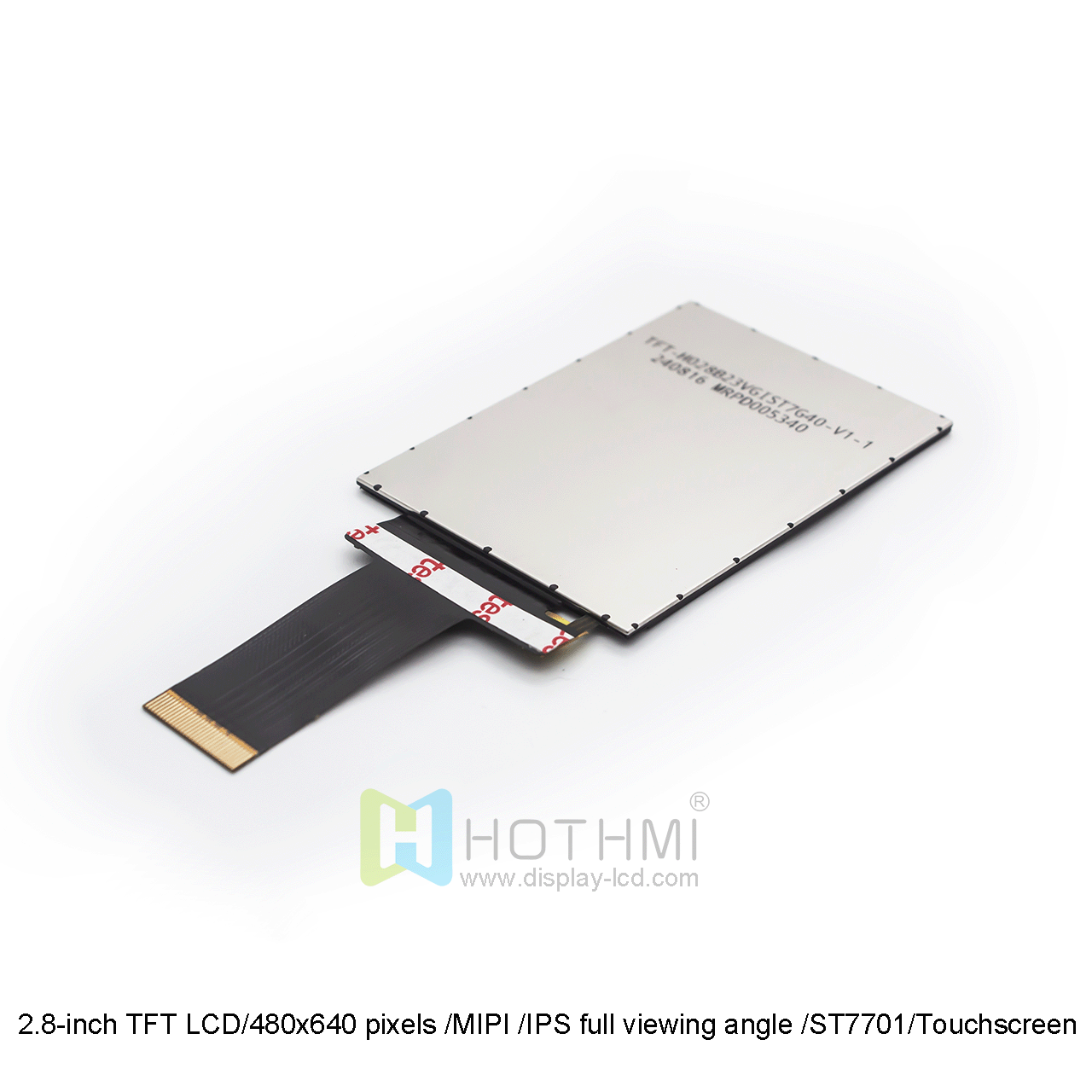

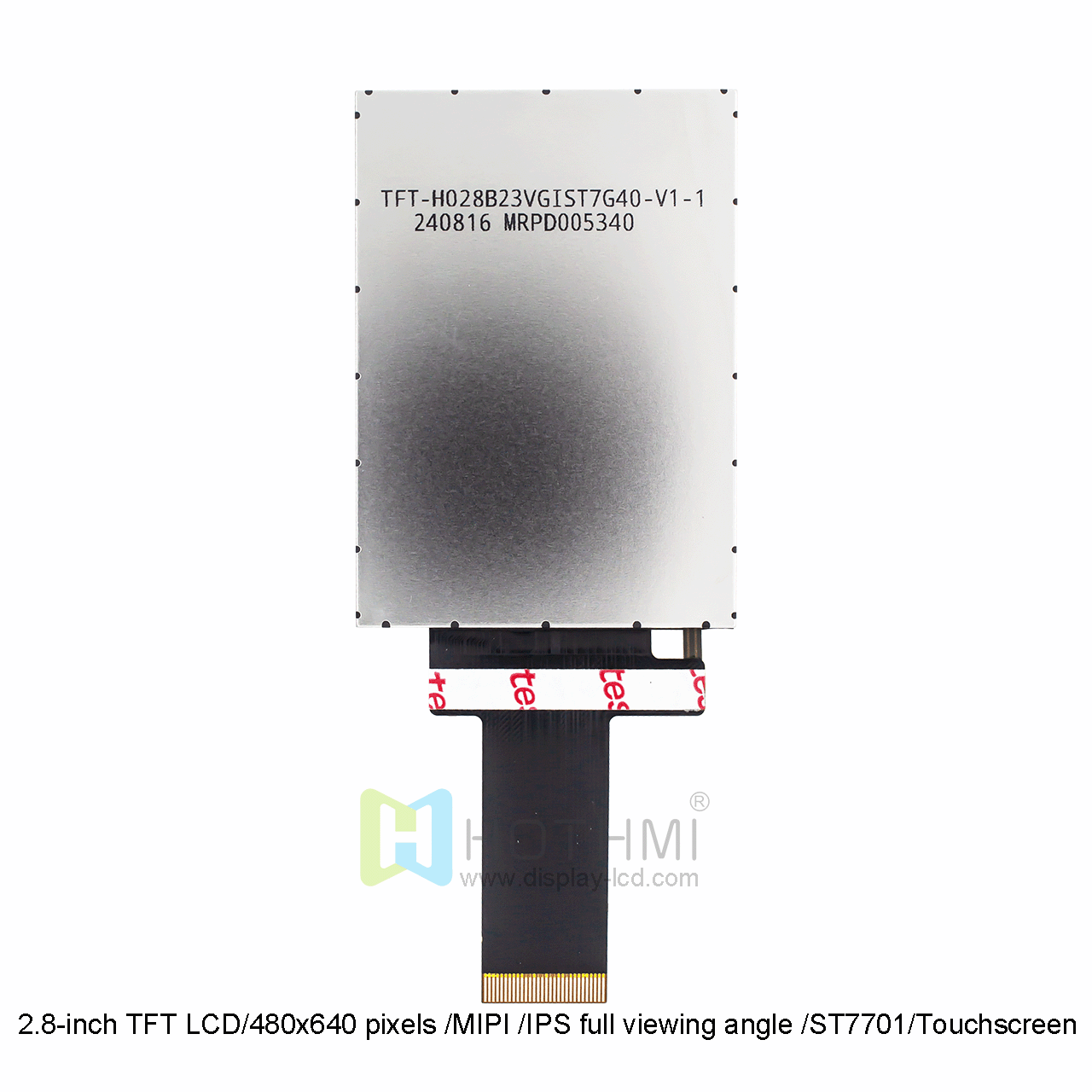

2.8 inch 480x640 TFT LCD | ST7701 Controller

2.8 inch 480x640 VGA TFT LCD | ST7701 Controller

▶ Model: TFT-H028B23VGIST5N30

▶ Type: 2.8 inch TFT LCD
▶ Display pixels: 480x640 dot matrix
▶ Dimensions (mm): 65.9*50.9*2.36
▶ Display inches: 2.8"
▶ Effective size (mm): 57.6*43.2
▶ Application: Handheld smart devices
▶ Viewing angle: Full View (U80/D80/R80/L80)
▶ Brightness: 500cd/m2
▶ Pin: FPC-30PIN
▶ Interface: MIPI
▶ Special reminder: Anti-static ESD 8KV
▶ Storage temperature: -30~80℃
▶ Operating temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7701<TFT> or compatible chip

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

JYX68 main control board-MIPI specified display screen
MIPI interface display to HI driver board Raspberry Pi universal 20pin/30pin/40pin
HI-MIPI-30pin universal adapter board
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485

Product Description
Customized Services
Attributes

TFT-H028B23VGIST5N30 | 2.8-inch 480x640 VGA TFT LCD | ST7701 controller
This 2.8-inch TFT LCD display is suitable for a variety of projects, from embedded systems to industrial equipment and handheld devices. It offers a crisp 480x640 pixel resolution and a bright LED backlight with a brightness of 500 cd/m², ensuring high-quality color images. It features a MIPI interface, which improves communication efficiency with devices such as Arduino and C8051. This flexible interface supports fast data transfer, enabling real-time updates, smooth animations, and dynamic visual effects.

While this display lacks touchscreen functionality and a glass cover, we can add touch functionality and a cover. We support custom cover glass, custom capacitive/resistive touchscreens, and custom FPCs. This product features IPS with a full viewing angle, ensuring excellent viewing quality from any angle. This makes it an ideal choice for projects that don't require touch functionality but require portrait mode visual output. The touchscreen model is the TFT-H028C2QVTST4C45, while the resistive touchscreen model is the TFT-H028A17QVTST2R37. These models come with an FPC cable that can be plugged in or soldered, allowing users to flexibly develop their own compatible control boards. They support development platforms such as Arduino and C8051. We also offer a 2.8-inch smart display with a driver board or a 2.8-inch SPI TFT LCD module with SPI communication. Users can easily assemble the display.

Furthermore, this display is RoHS-compliant and adheres to strict environmental and safety standards, demonstrating our commitment to both environmental protection and user safety. Overall, this display combines performance, flexibility, and reliability, making it suitable for a variety of modern electronic devices and projects.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H028B23VGIST5N30	February 02, 2025	1.84MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

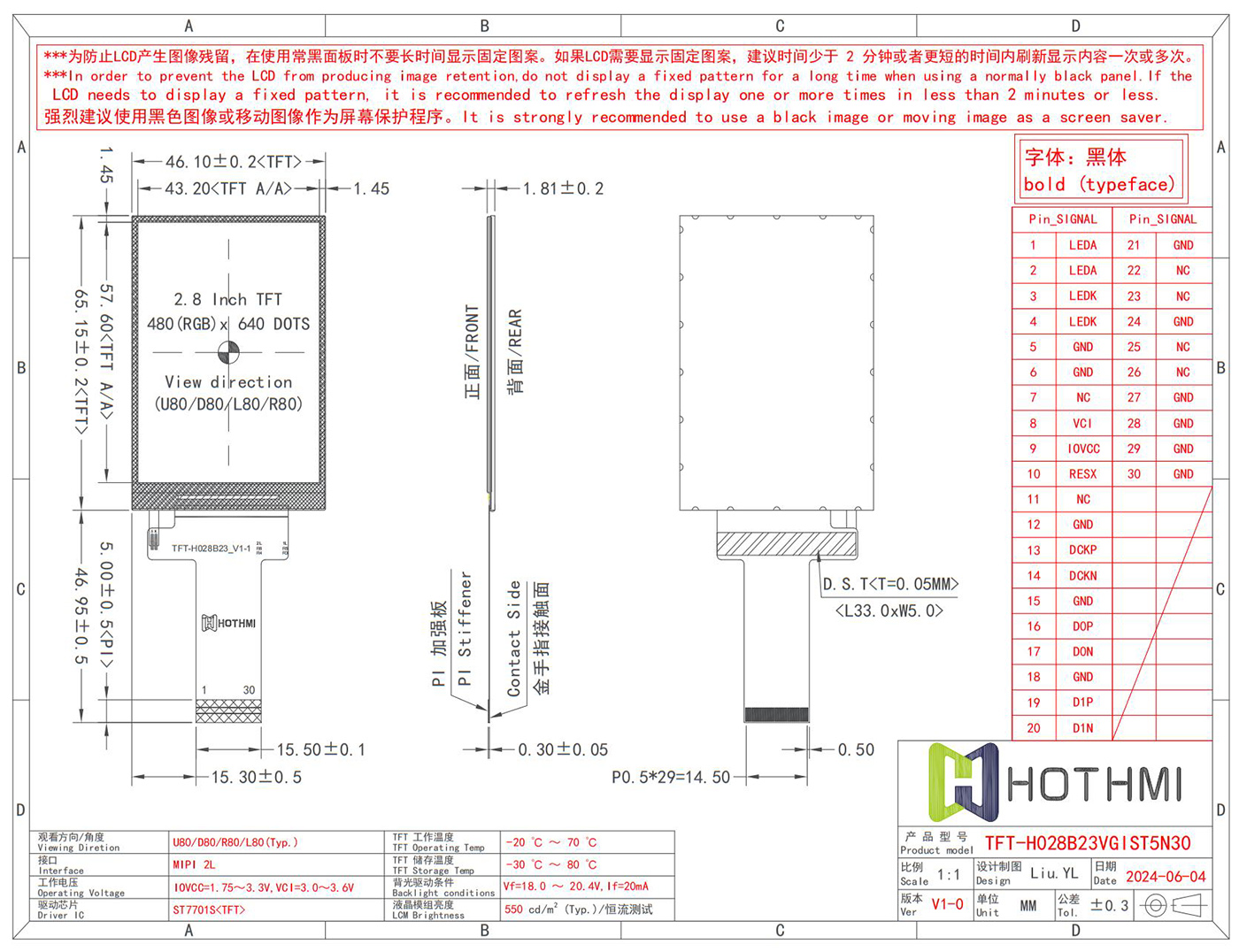

parameter	Specification content	Unit
TFT series	TFT-H028B23VGIST5N30
Diagonal size	2.8”	Inch
Resolution	480x640	Dot
Dimensions	65.950.92.36	mm
Active area (AA)	57.6*43.2	mm
LCD type	TFT wide temperature and full viewing angle display	mm
Display viewing angle	IPS
Aspect ratio	3:2
Backlight type	LED white
TFT driver IC	ST7701<TFT> or compatible
Brightness	500	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
