2.4 Inch 240x320 IPS TFT LCD | ST7789V Driver IC

2.4 Inch 240x320 IPS TFT LCD | ST7789V Driver IC

▶ Model: TFT-H024B19QVISTTN37

▶ Type: 2.4 inch TFT LCD
▶ Display pixels: 240x320
▶ Dimensions (mm): 42.72.0x60.26x2.5
▶ Display inches: 2.4"
▶ AA size (mm): 36.72x48.96
▶ Application: handheld devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 1700cd/m2
▶ Pin: FPC-37 pin
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver IC: ST7789V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485

Product Description
Customized Services
Attributes

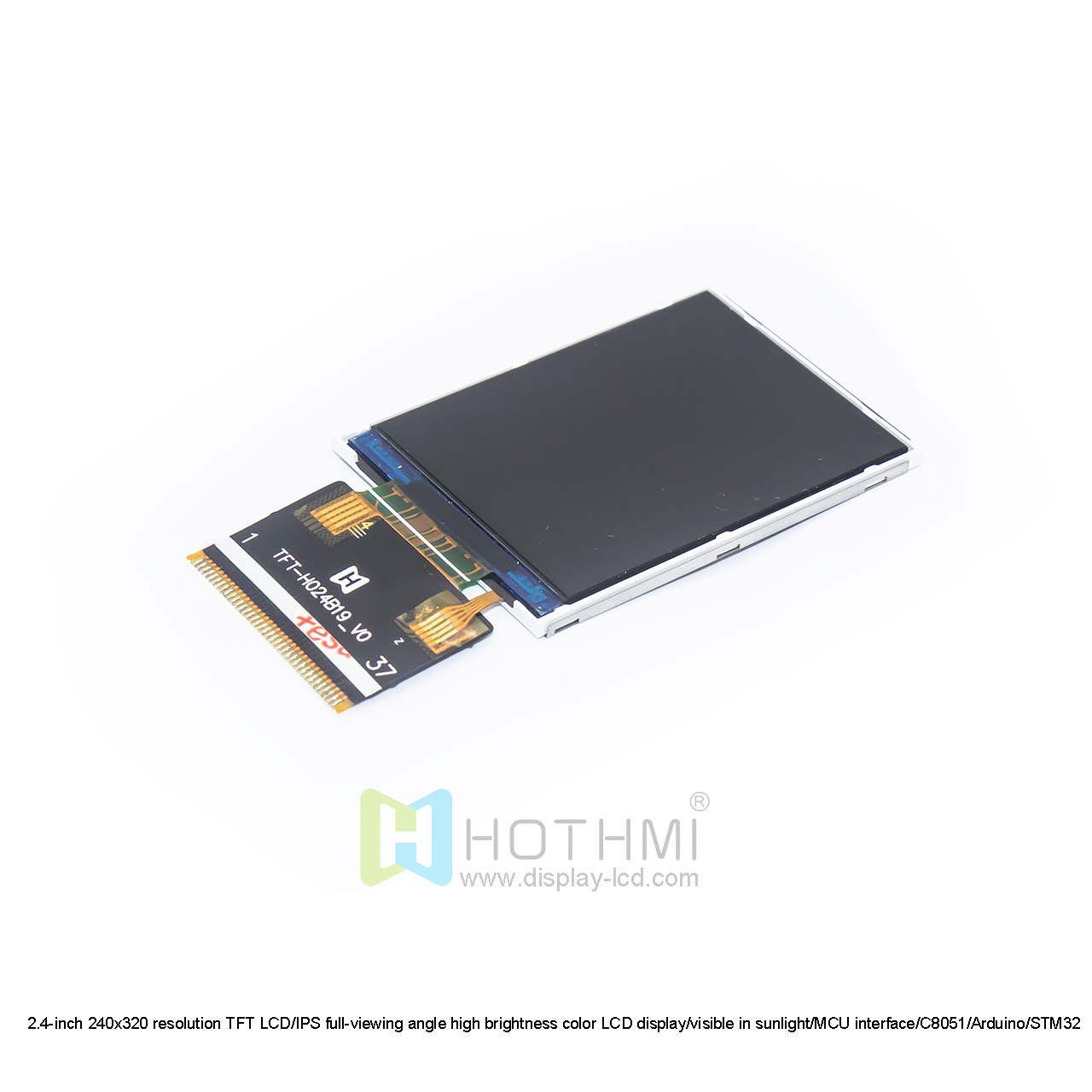

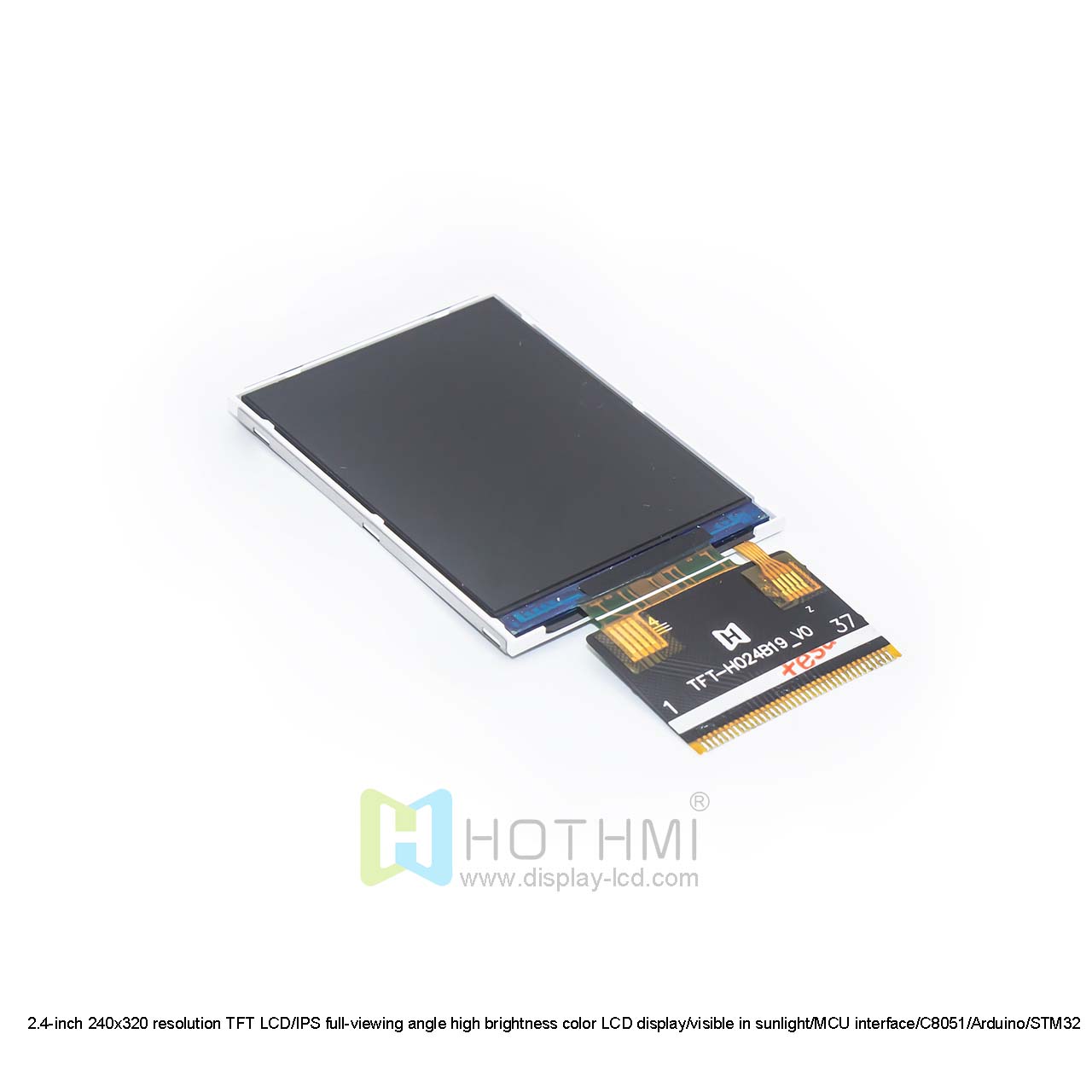

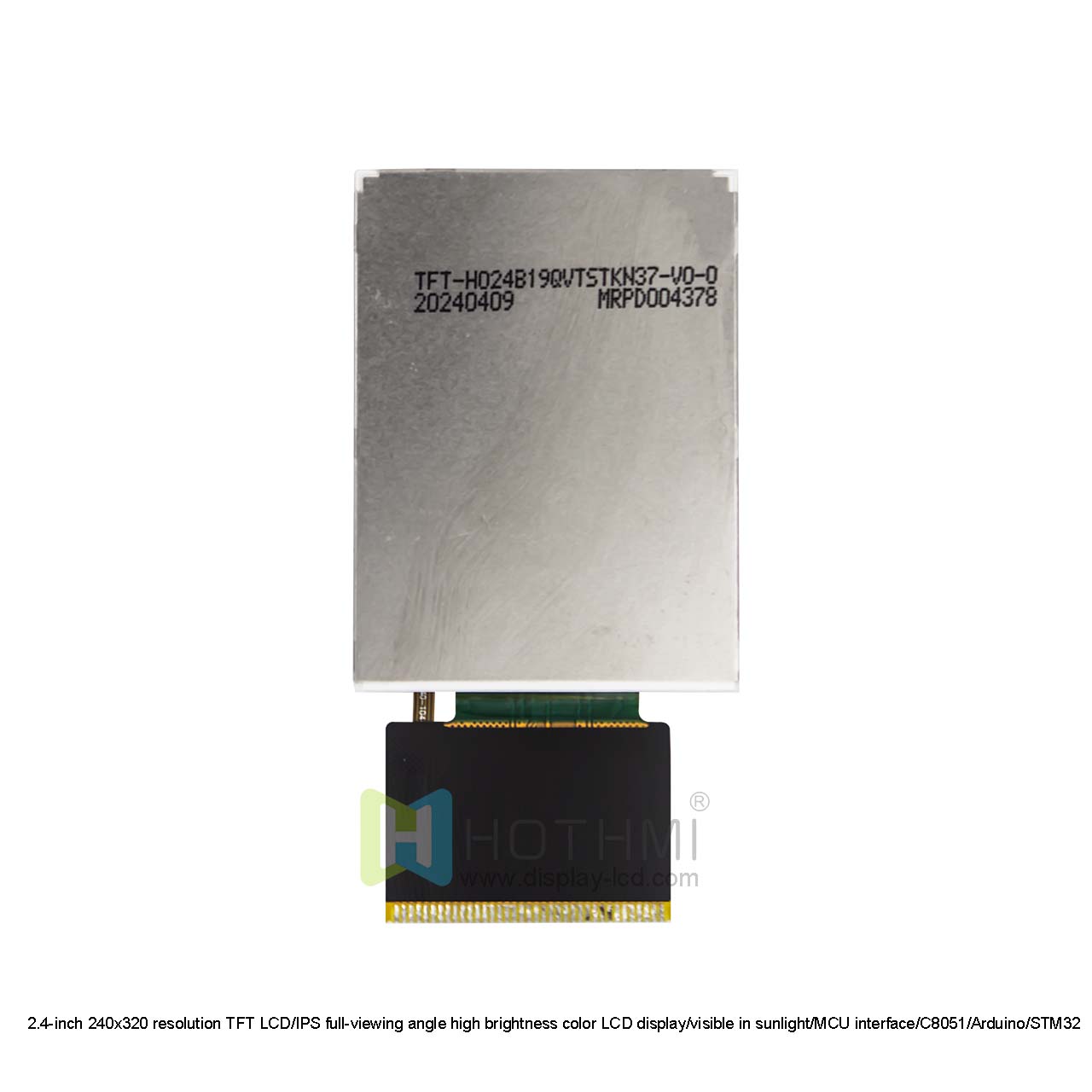

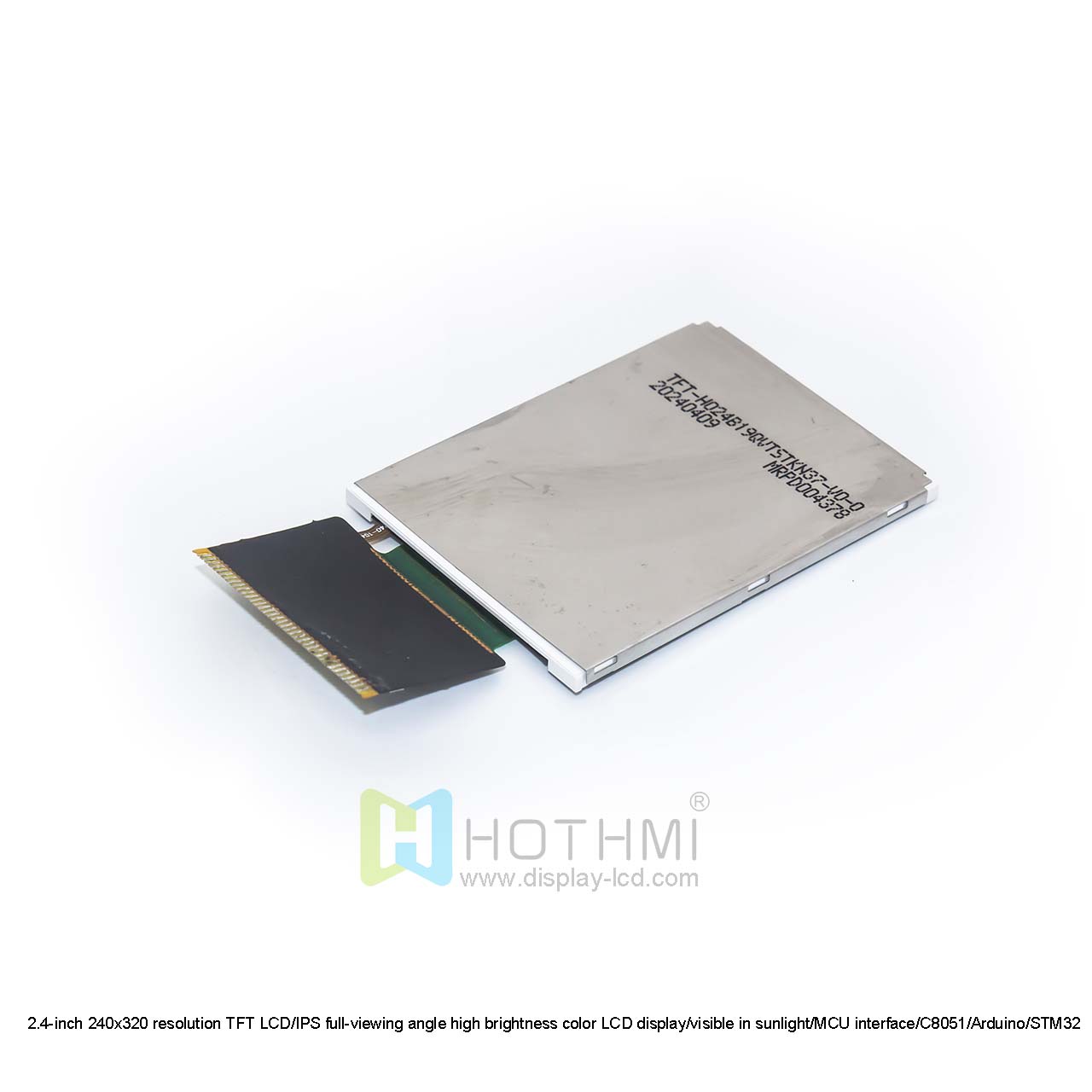

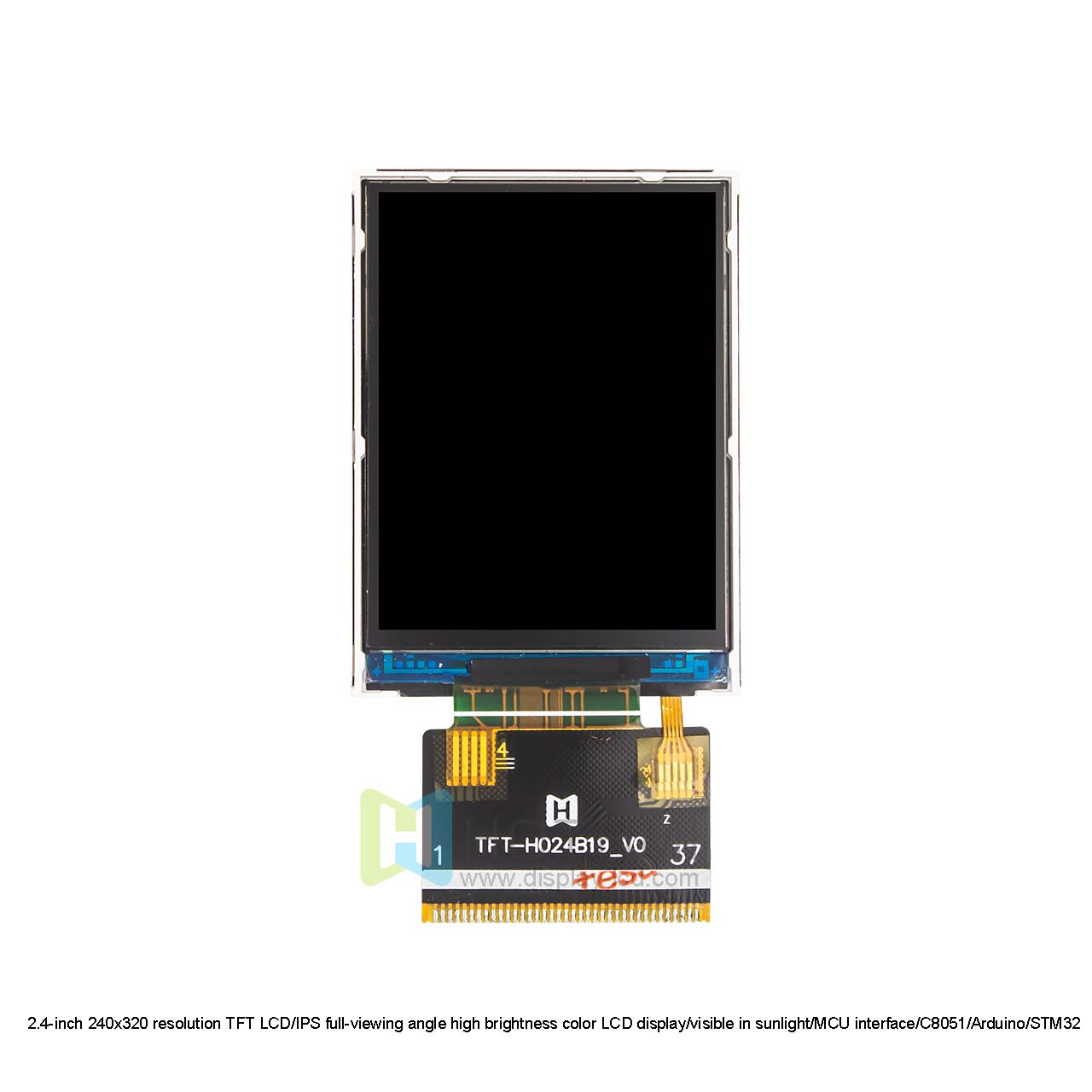

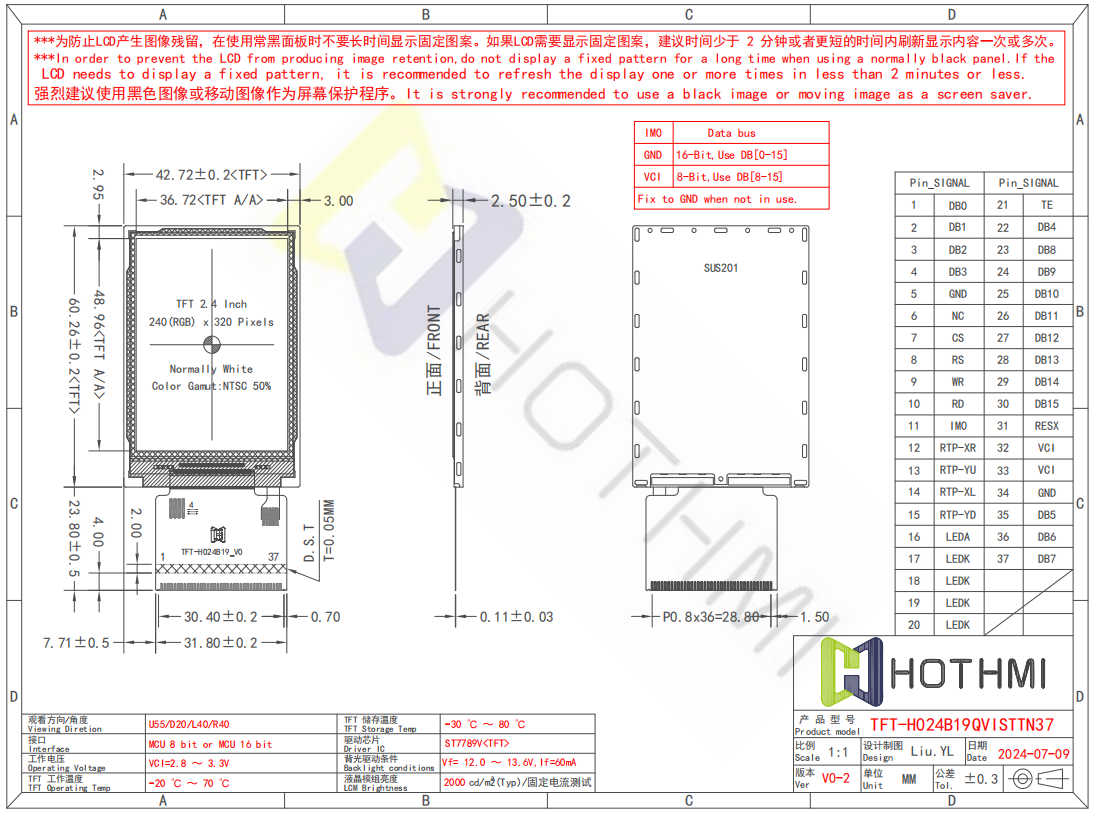

TFT-H024B19QVISTTN37 | 2.4-inch 240x320 IPS TFT LCD | ST7789V Driver IC | Ultra-High Brightness, Sunlight Readable
This TFT-H024B19QVISTTN37 | 2.4-inch 240x320 IPS TFT LCD features a 240x320 resolution, full-viewing angle IPS display. Its wide viewing angle and ultra-high brightness ensure high-definition image quality and high contrast, making it sunlight-readable and ideal for outdoor applications. It features a built-in ST7789V controller with MCU interface support, making it compatible with development platforms such as the C8051 and Arduino. Compared to other products in the same series, this model boasts an exceptionally high brightness of 1700 cd/m², ensuring clear readability even in strong summer sunlight.

This product includes an FPC cable, allowing developers to flexibly connect the display to various development platforms. We also offer a comprehensive range of other 2.4-inch display screens in the same series. Please click here to learn more about our 2.4-inch display series. Lack of development skills? No problem! We also offer the HTM-H024A16-UART-A02 smart display with a driver board for this 2.4-inch display module.

Hot Display's displays have a wide operating temperature range, from -20°C to +70°C. All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, outdoor smart devices, and systems such as Arduino.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H024B19QVISTTN37	January 01, 2025	1.03MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H024B19QVISTTN37
Diagonal size	2.4”	Inch
Resolution	240x320	Dot
Dimensions	42.72.0x60.26x2.5	mm
Active area (AA)	36.72x48.96	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	ST7789V
Brightness	1700	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
