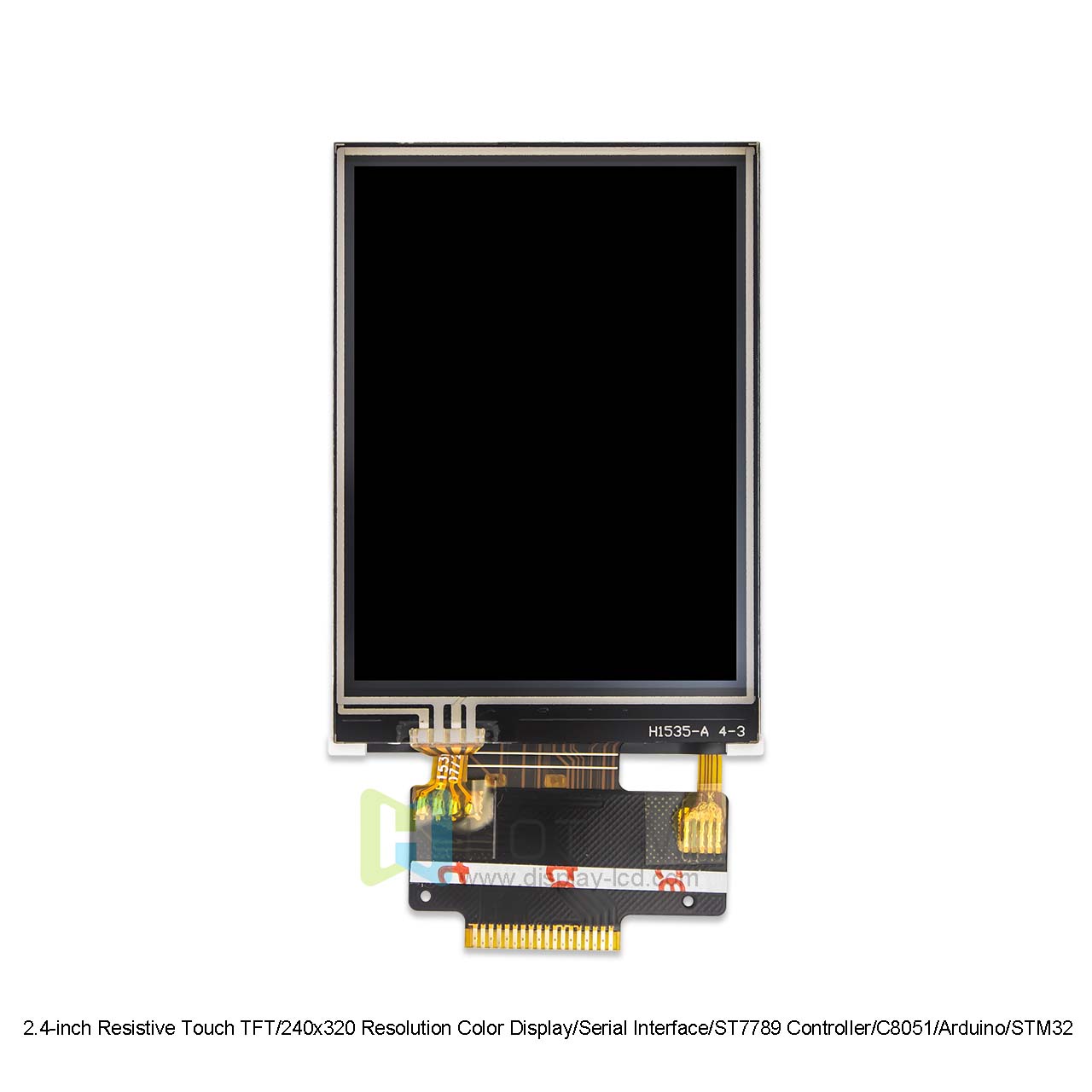

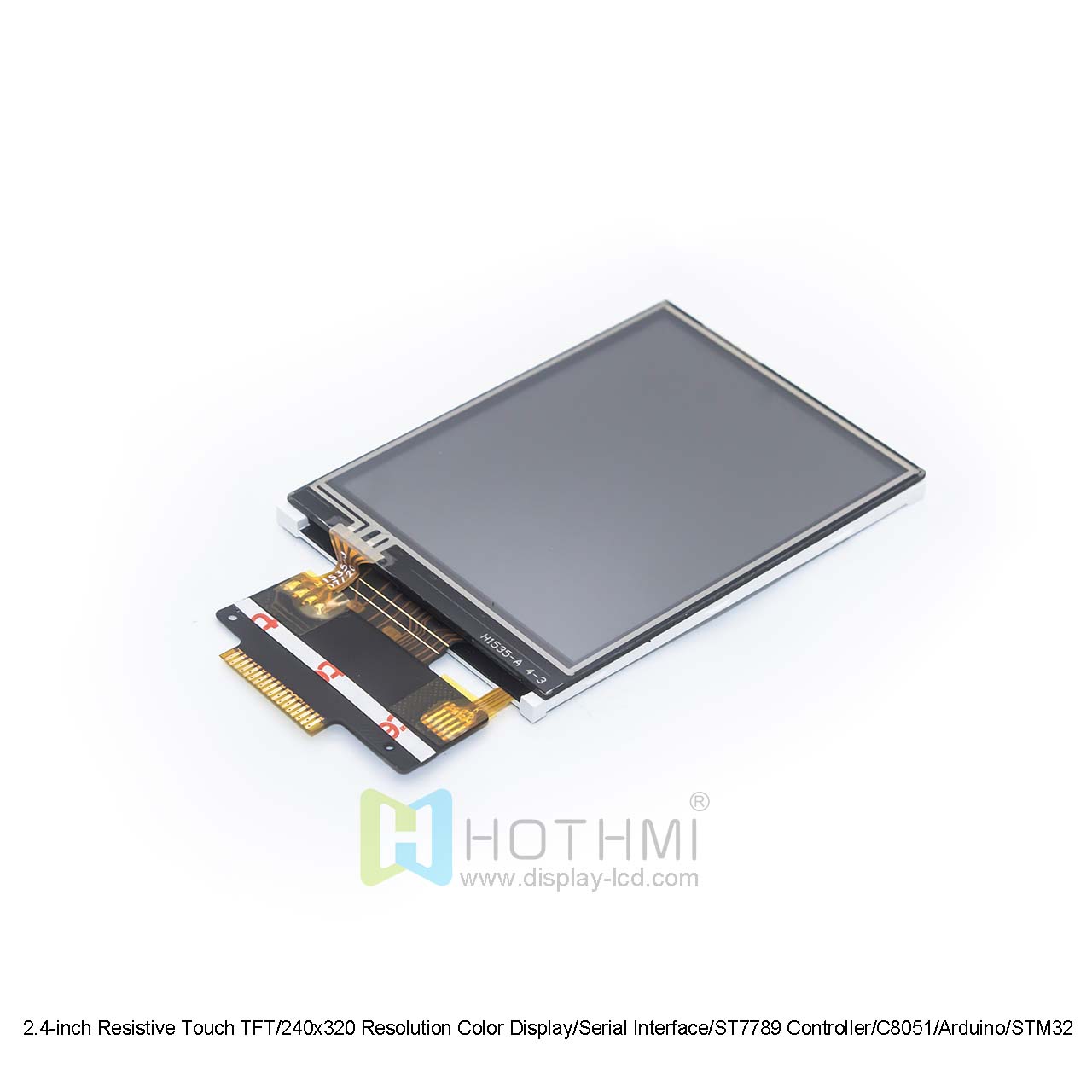

2.4 Inch TFT Display Module With Resistive Touch

2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC

▶ Model: TFT-H024B26QVTST3R18

▶ Type: 2.4" TFT Panel
▶ Display pixels: 240x320
▶ Dimensions (mm): 42.72x60.26x3.65
▶ Display inches: 2.4"
▶ Effective size (mm): 36.72x48.96
▶ Application: Instrumentation
▶ Viewing angle: full viewing angle
▶ Brightness: 350cd/m2
▶ Pin: FPC-18PIN
▶ Interface: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7789

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485

Product Description
Customized Services
Attributes

2.4" TFT Panel | 240x320 Resistive MCU TFT Display | ST7789 Controller
This 2.4-inch TFT panel features a resistive touchscreen and a 240x320 pixel resolution. The TFT panel boasts a high contrast ratio of 800:1, delivering deep blacks and vibrant colors. IPS technology enables full viewing angles, providing stunning clarity, excellent color reproduction, enhanced image consistency, and high contrast.

The TFT-H024B26QVTST3R18 incorporates an ST7789 controller and uses an MCU serial interface to transmit data to the display. It is compatible with the C8051/Arduino/STM32 series. This model features a resistive touchscreen for accurate touch control, allowing smooth operation even with a fingertip. It is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics.

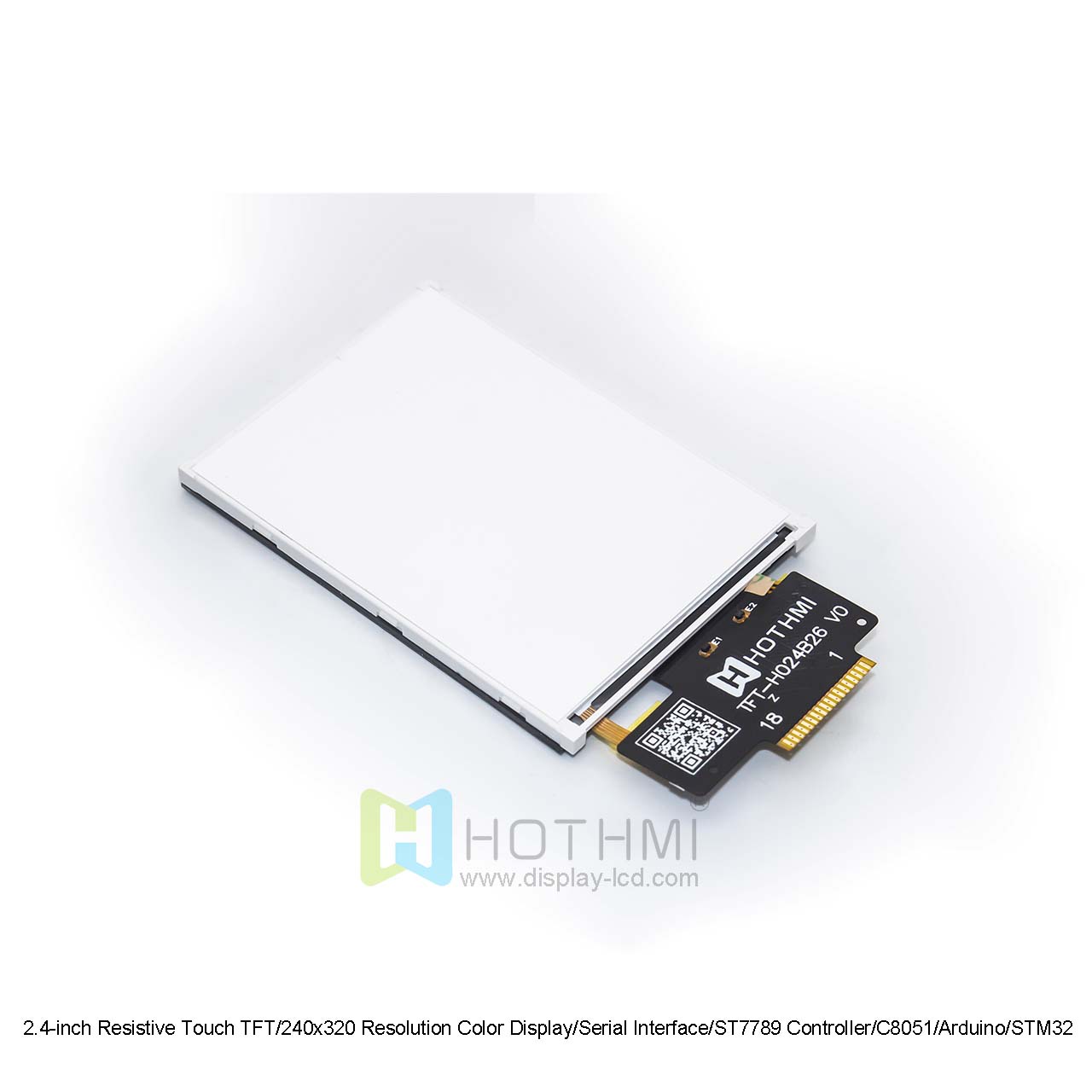

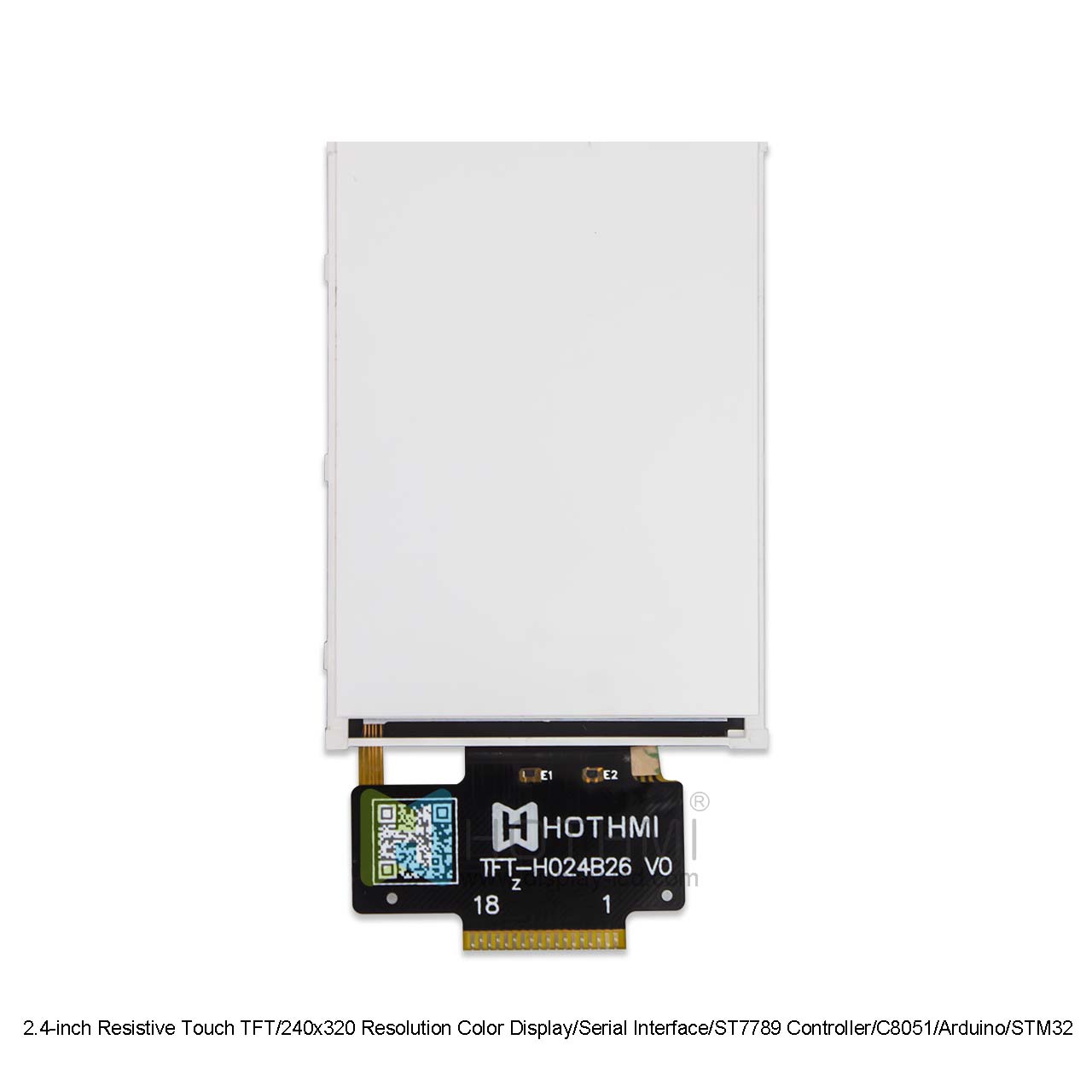

Constructively, this 2.4-inch TFT panel utilizes an FPC (flexible flat cable) connection, ensuring easy electrical connection and allowing developers to conveniently connect the display to their development board. Our displays are RoHS-compliant and adhere to strict environmental and safety standards.

The non-touch version of this product is the TFT-H024B26QVTST4N18. Users can also choose the capacitive touch model TFT-H024A16QVIST4C10 in this series. If users do not have development capabilities, we also provide a module with an intelligent driver board: HTM-H024B25-UART-A01.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H024B26QVTST3R18	January 01, 2025	1,001.15KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H024B26QVTST3R18
Diagonal size	2.4”	Inch
Resolution	240x320	Dot
Dimensions	42.72x60.26x3.65	mm
Active area (AA)	36.72x48.96	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	ST7789V
Brightness	1700	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
